Live Event Solution

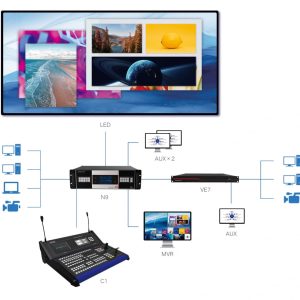

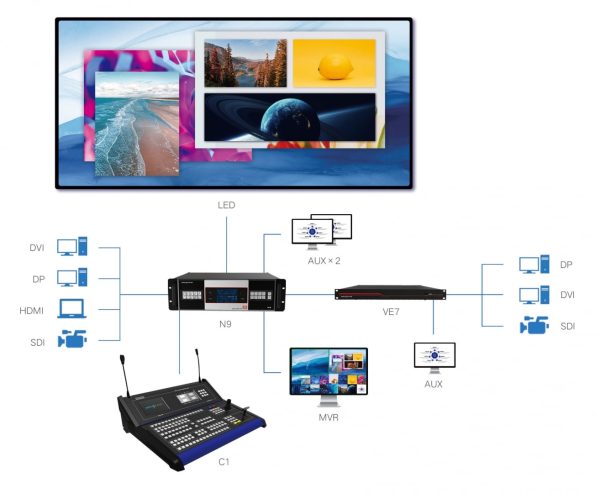

C1 + N9+VE7
A totally new way to experience event poeration is coming
How can the C1 + N9 + VE7 streamline your stage control?
Stage Control,
The NovaStar Way
For stage control or TV studio applications, quick and stable control is a must. The C1+N9+VE7 is the perfect solution to meet the needs of this type of application. The N9 acts as a switcher, splicer and processor, the VE7 is a video Input Expander, while the C1 console handles the stage control. With a dual-screen design, the C1 removes the necessity of complex and slow software operation, allowing you to effortlessly control the stage.
FEATURES
01
Real 4K for breathtaking visuals
- Supports 16 video source inputs, up to 5×4K outputs
- Supports up to 4K×2K@60Hz
- 4 DVI outputs, loading capacity up to 8K×1K
- 3 AUX outputs can be used for teleprompter
02
Simplified operation
for maximum effiency
- Supports 32 user presets, accessible at the push of a button
- Supports numerical input for parameters
- Visual interface for easy operation
- The C1 has a dual-LCD screen design, with one screen for monitoring, and the other for touch control
03
Amazing picture,
allowing ultimate creativity
- Supports up to 7 layers in any location
- Supports capture of 8 HD screenshots
- Supports 1024 steps of fade-in and fade-out
- Supports crop, duplicate, mirror
04
Advanced design for reliability
and stability
- Redundant backup outputs, support for Dual-link mode
- MVR output allows global monitoring for all inputs and outputs

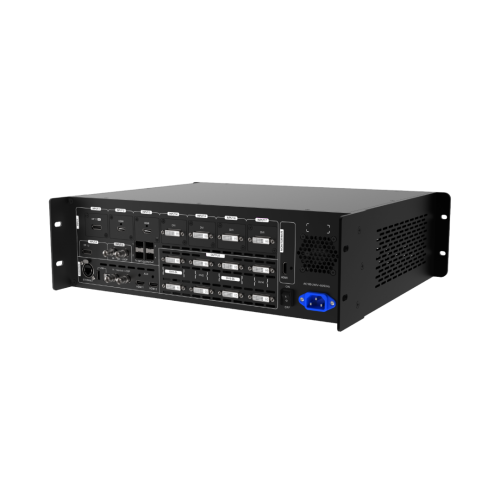

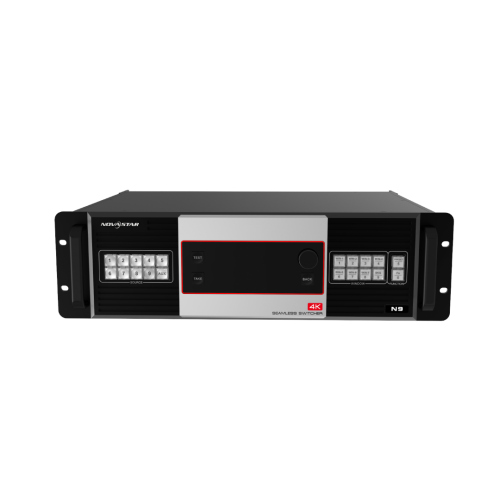

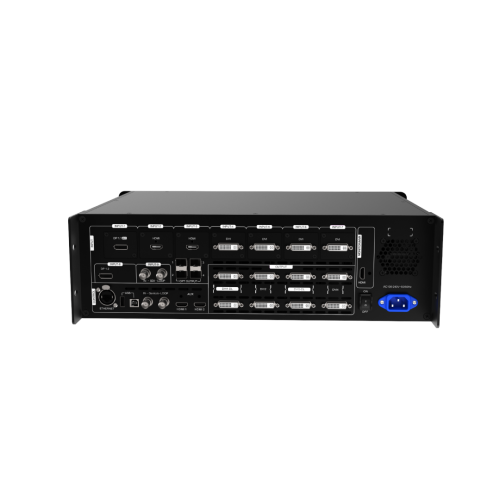

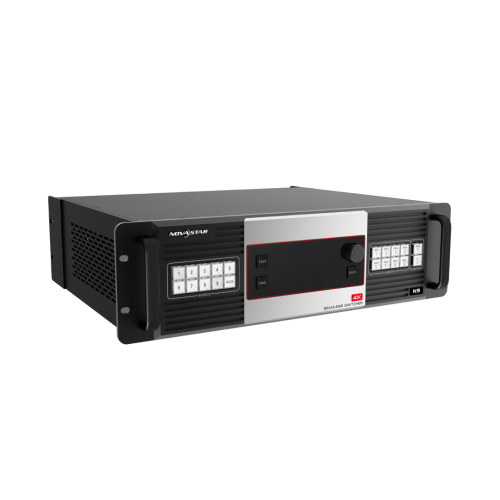

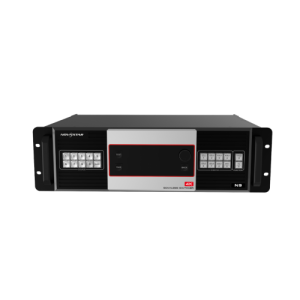

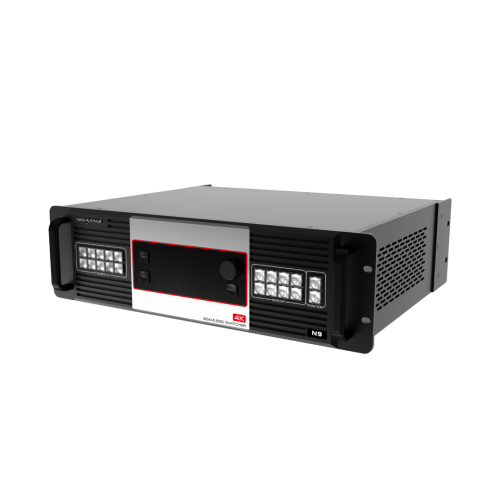

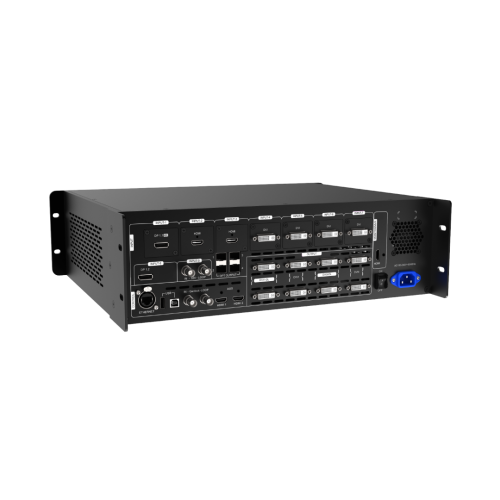

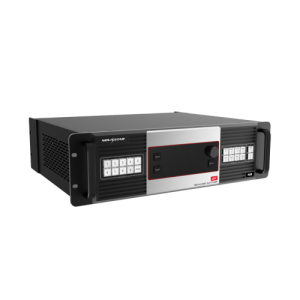

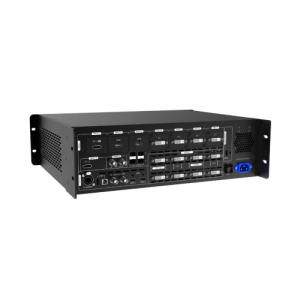

N9
Multi-layer Seamless Switcher
Real 4K for breathtaking pixel to pixel display
- 9 input sources, including two 4K source inputs.
- 4 DVI master outputs, for up to 8K×1K or 4K×2K loading capacity with a single unit.
Multiple Layers for creative arrangements
- Support for 7 layers in any location, each up to 4K×2K.
Fully featured for ultimate efficiency
- 2 AUX outputs can be used for teleprompter. Fade in/out switching effects.
- Supports 32 user presets, easily accessible with the push of a button.
Dual-Redundancy for ultimate stability
- Redundant backup outputs (supports single or dual link mode).
- MVR output allows total monitoring for worry-free operation.

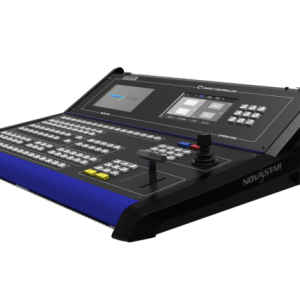

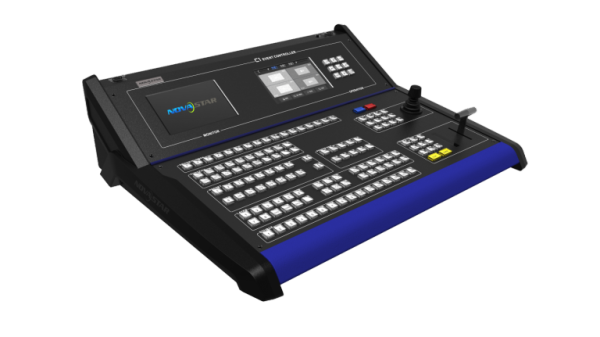

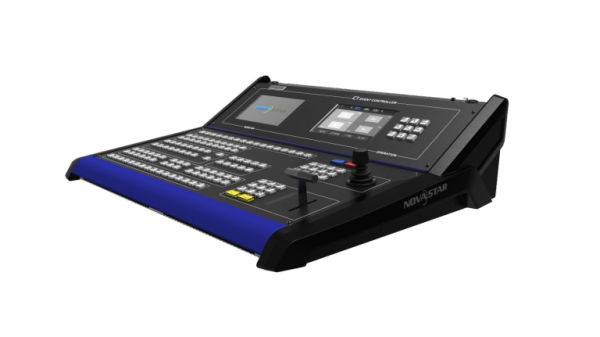

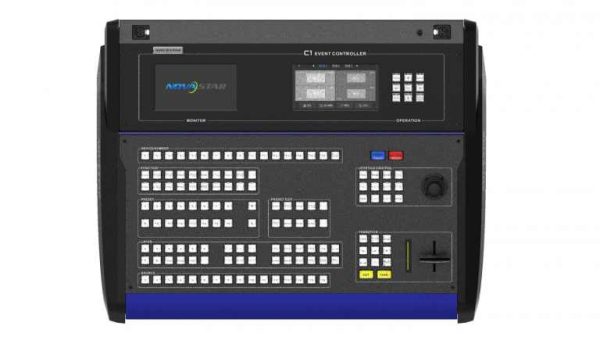

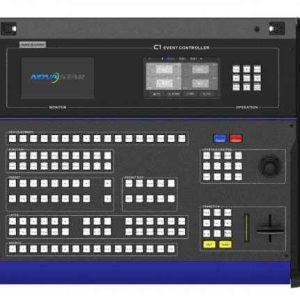

C1
Video Control Console
User-friendly dual touchscreen design
- Left screen allows real-time PVW and PGM monitoring.
- Right screen allows touch operation for ultimate control over inputs, outputs, and display.
Simple operation
- Supports numerical input for parameters.
- Support for numerous hotkeys to simplify workflow.
- Supports presets for multiple users, switchable with the press of a button.
Advanced design for a streamlined workflow
- Sleek and powerful design.
- Clear and intuitive layout for simplified operation.
- Aviation-style T-bar for free switching.

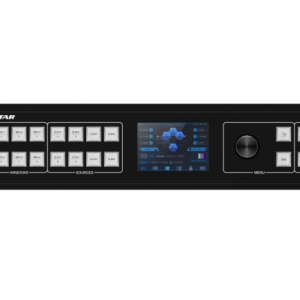

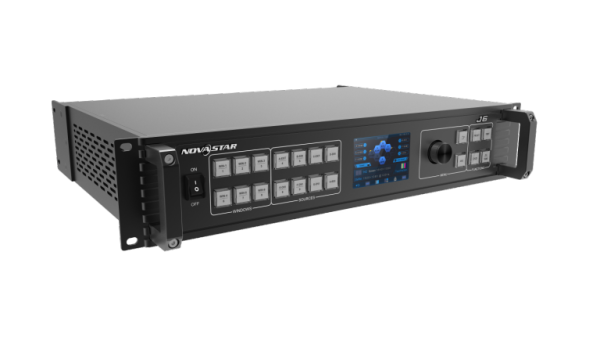

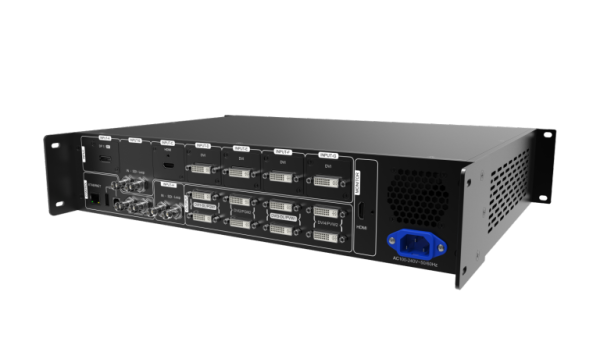

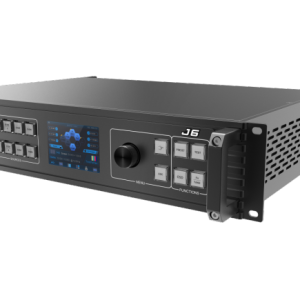

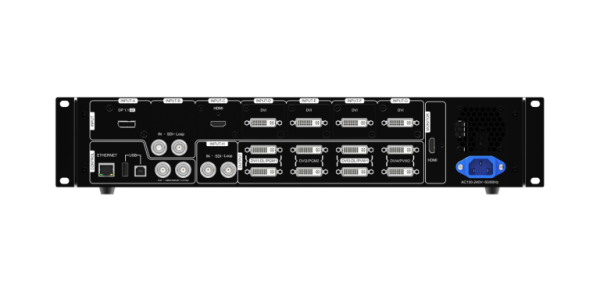

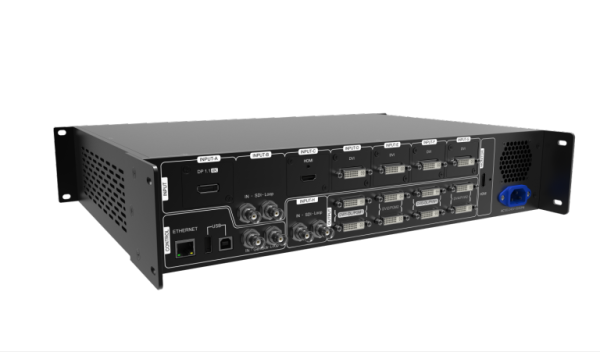

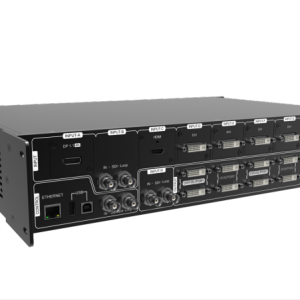

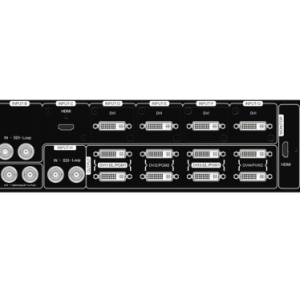

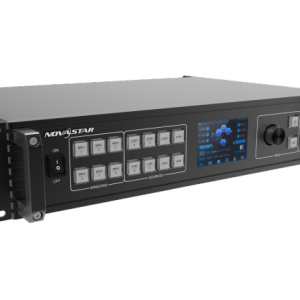

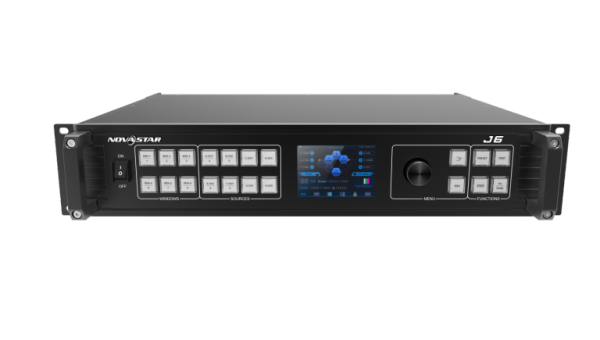

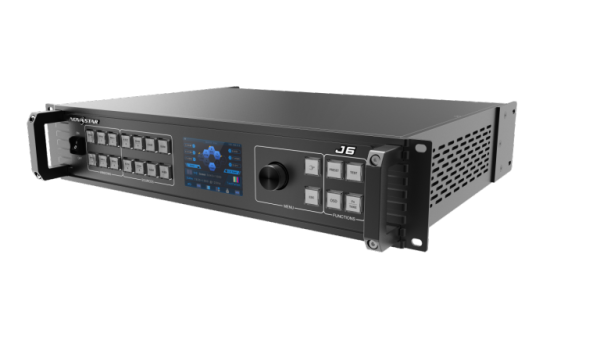

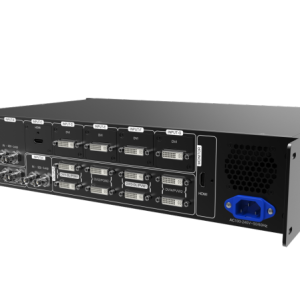

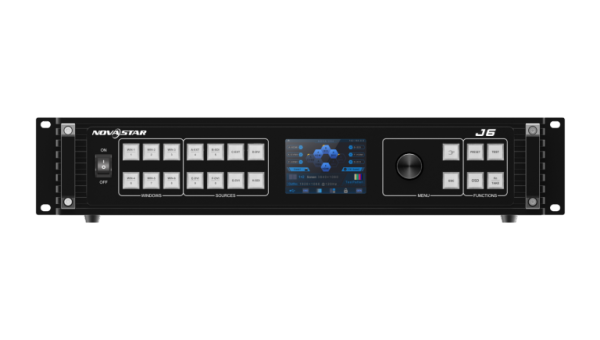

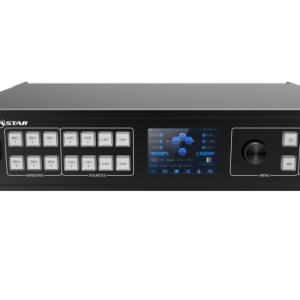

J6
Multi-layer Seamless Switcher
Dual-mode
- Switcher and splicer modes for ultimate flexibility
Splicer mode
- 4 Main outputs, with support for 4K×2K processing. Can realize larger size pixel to pixel display without scaling using media server.
Switcher mode
- 2 Main outputs with support for 4K×1K processing.
- Support capture each input sources and PGM as a BKG, A total of 6 BKGs can be supported.

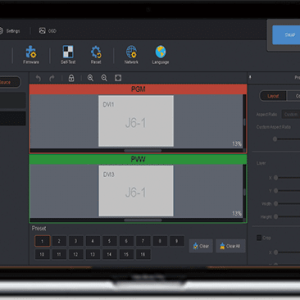

- Support for real-time monitoring with PVW and PGM. Support fade in & fade out switching effects.
Abundant layers
- Support for 6 layers, each up to 4K×2K.
- Crossing Multiple outputs will not limit number of layers.
Secure and stable
- Dual-Redundancy for ultimate stability
- Redundant backup outputs (supports single or dual link mode).
Stunning image quality
- 8 input sources, including one 4K×1K source inputs

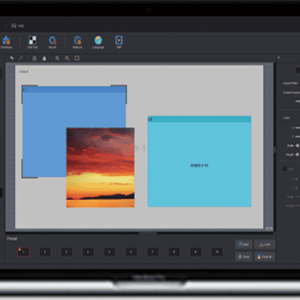

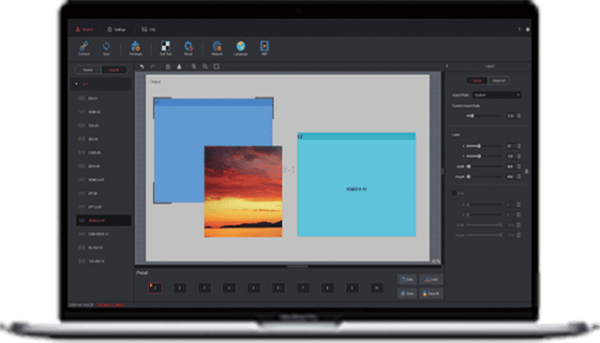

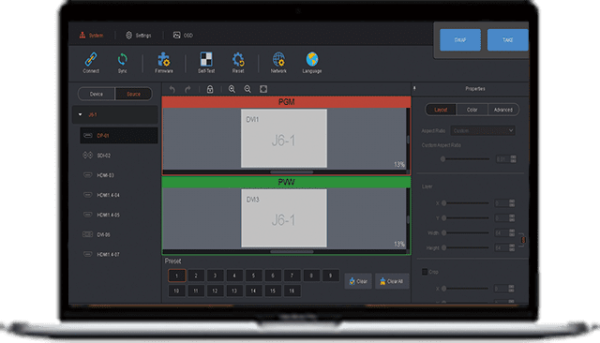

- Simple, intuitive interface.
- Intuitive port mapping.
- Integrates well with NovaStar products.
- Quick and Easy layer creation.
- Flexible switching effects.
- Support for both Windows and MacOS.
